SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS C-MAP 4D Card [ORIONCF]

SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS C-MAP 4D Card [ORIONCF]

SI-TEX 10" Chartplotter/Sounder Combo w/Internal GPS C-MAP 4D Card [ORIONCF]

~~$1,899.00~~ $1,595.99

10" Chartplotter/Sounder Combo with Internal GPS & C-MAP 4D Card10.4” Touch Screen with Heavy Duty Silicone Keypad so operators can choose to use either the Touch Screen or the Keypad to Operate. The unit can also be programmed to switch between Day Time and Night Time Screens by the operator...

SKU :
Categories : Marine Electronics, Marine Navigation & Instruments, Marine Navigation & Instruments - GPS - Fishfinder Combos, SI-TEX

Why Choose Us ?

Official Herschel stockist Australian warranty assistance & support Australian shipping & returns.Customer first experience environmentally focused

Returns

Return this product within 100 days if you change your mind. Get a refund/replacement & free return shipping if it arrives damaged or not as described

Shipping

Free if stated near price. $9.95 Australia wide (up to 10 items). $18.95 for Express Post (generally 1 business day).

10" Chartplotter/Sounder Combo with Internal GPS & C-MAP 4D Card

10.4” Touch Screen with Heavy Duty Silicone Keypad so operators can choose to use either the Touch Screen or the Keypad to Operate. The unit can also be programmed to switch between Day Time and Night Time Screens by the operator at custom-selected times.

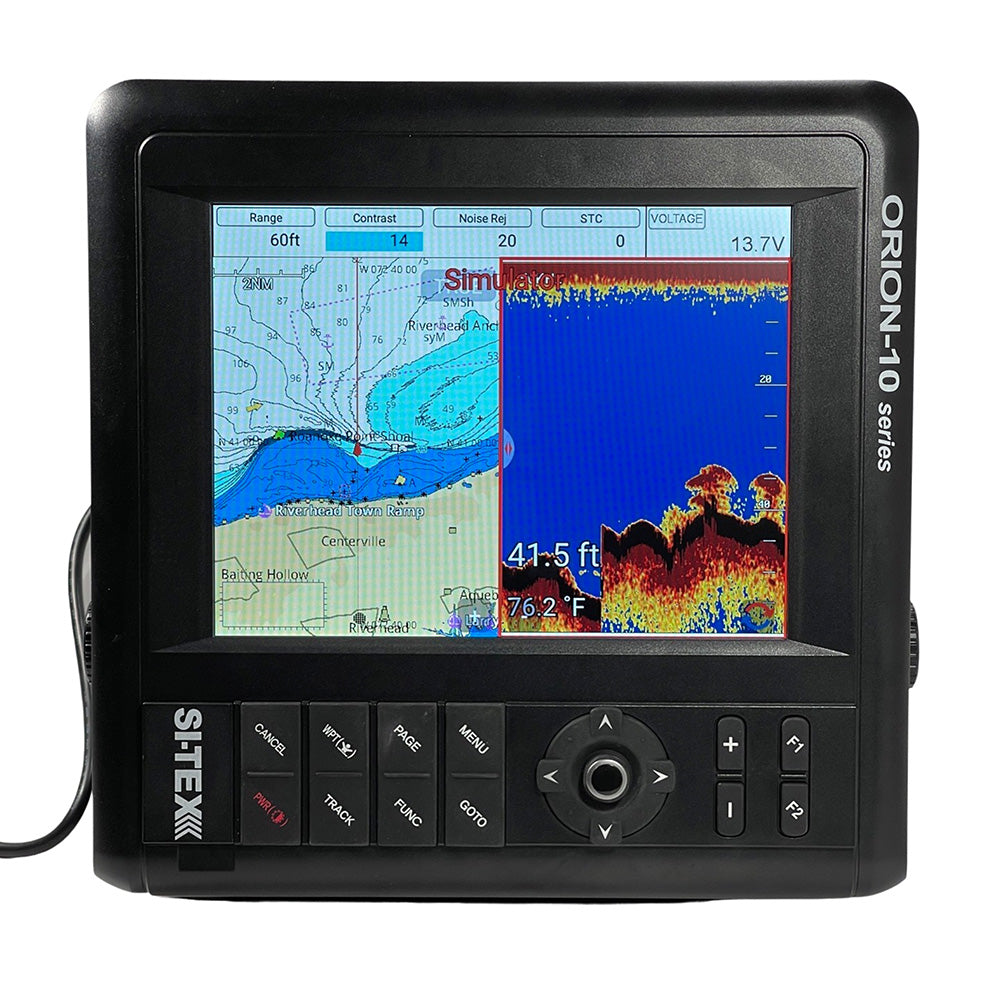

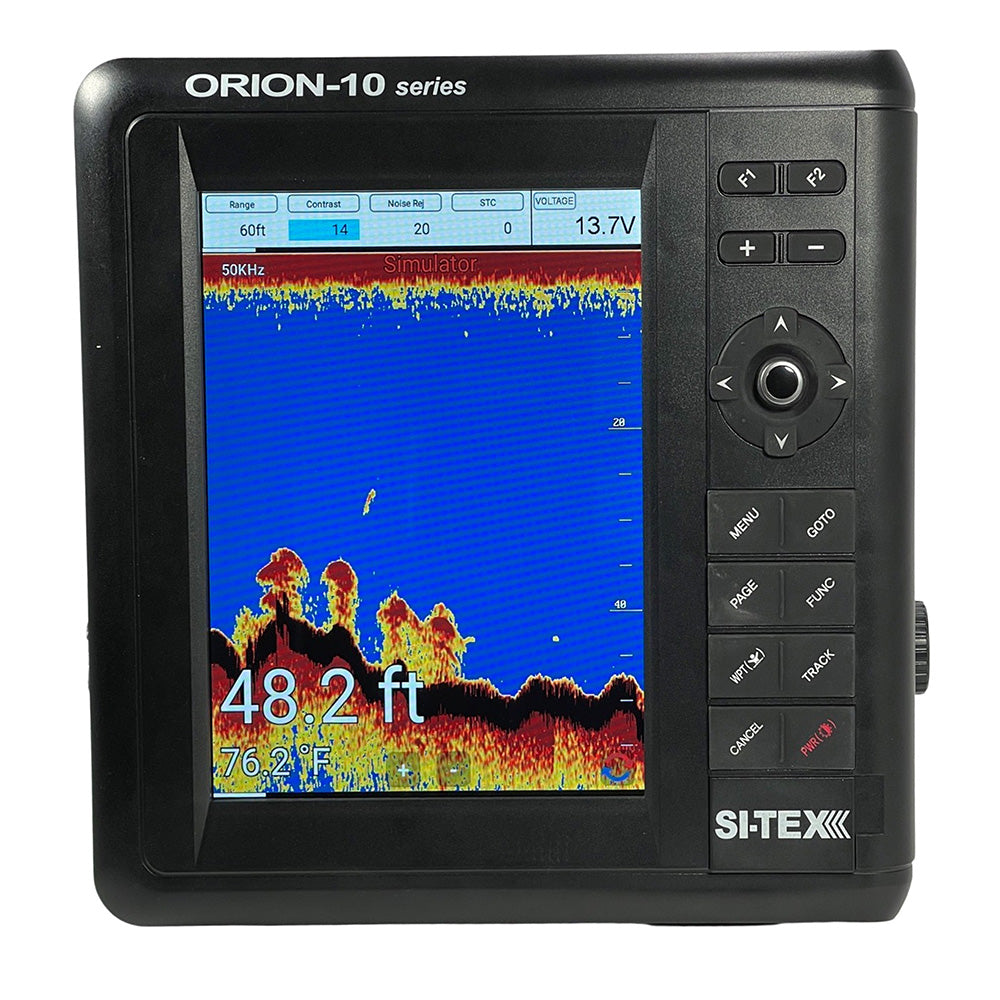

It has the unique ability to be set up in either Portrait or Landscape Layouts. The mounting bracket has two different attachment points to accommodate the screen layouts. And with a simple menu command, the screen will rotate 90’ degrees from Portrait to Landscape format depending on the customer's preference.

The unit is very quickly flush-mounted with removable trim pieces on the top and bottom edges to allow the unit to be screwed in from the front.

Features:

100,000 waypoints (A total of 16 colors and 16 icons are selectable for each point with a name tag (8 alphanumeric characters)
50,000 track points (2 types)
100 routes max capacity (20 WPTs per each Route. Each with name tags)
Uses the C-Map 4D Cartography Only
Internal GPS antenna and the option for a simple passive GPS antenna if needed
52 Channel GPS Receiver that works with U.S. GNSS, Russian GLONASS, and the European GALILEO GPS Networks.
Network Data Connections – NMEA-2000 & NMEA-0183

Chartplotter Technical Specifications:

Horizontal Positioning Accuracy - Autonomous 2.5m (CEP 50%)
Sensitivity - Acquisition (-148 dBm), Tracking (-165 dBm), Reacquisition (-162 dBm)
Nav Update - 1Hz, 5Hz
Latitude Limits - Between 85°N to 85°S
Map Scale - 0.05nm to 1500nm
Display Screen - 10.4-inch Color LCD with LED backlight
Resolution - SVGA (800 X 600 pixels)
Power Supply - DC 12V-36V(+-10%) 12W
Operating Temperature - -15°C+50°C

Fishfinder Technical Specifications:

Display Mode - Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope
Frequency - 50 and 200 KHz (single or dual)
Output Power - 600W/1.5W
Range - 600W : 2.5m 600m / 1.5KW: 2.5m 1500m
Image speed - Fixed 8 speeds (4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32) and stop
Function - Gain (auto/manual), Range (auto/manual), Depth with shift (auto/manual), Pulse length selection, White/Black line, Water temperature, Support speed sensor

In the Box:

Display Unit
US C-Map 4D Card
Protector
Mounting Bracket
Bracket Knobs
Fuse & Bolt
Power Cable
Owner's Manual

Specifications:

Cartography Brand: C-Map
Screen Size: 10.4"
Touchscreen: Yes
Transducer Included: No
Box Dimensions: 10"H x 15"W x 15"L WT: 17 lbs
UPC: 010407111926

Owner's Manual (pdf)
